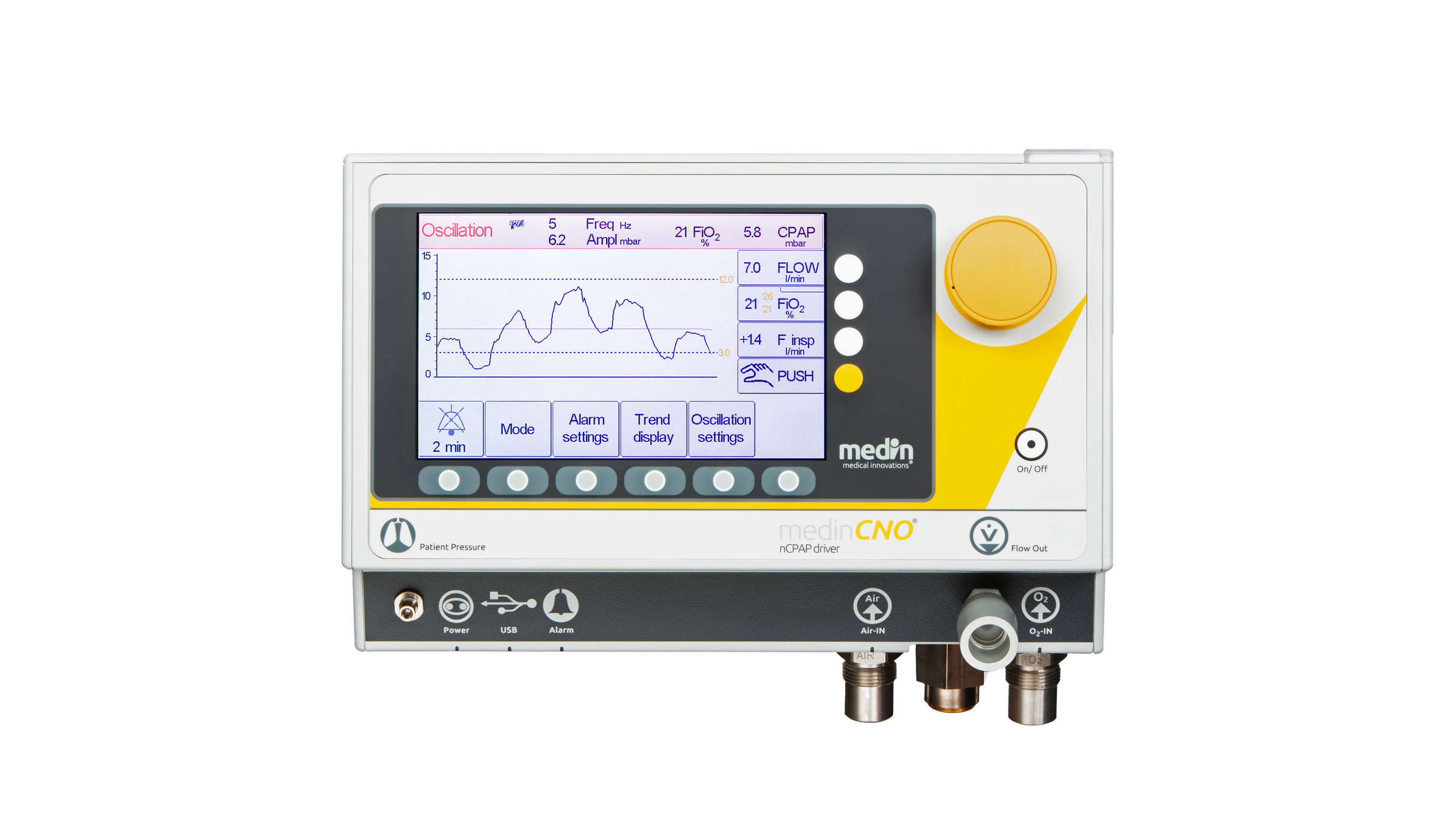

medinCNO. Non-invasive respiratory support

"" ""

Product benefits

  • nCPAP with nHFV
  • Synchronized NIPPV mode
  • Apnea monitoring
  • MediTRIG: Integrated trigger without additional sensor
  • Leakage compensation

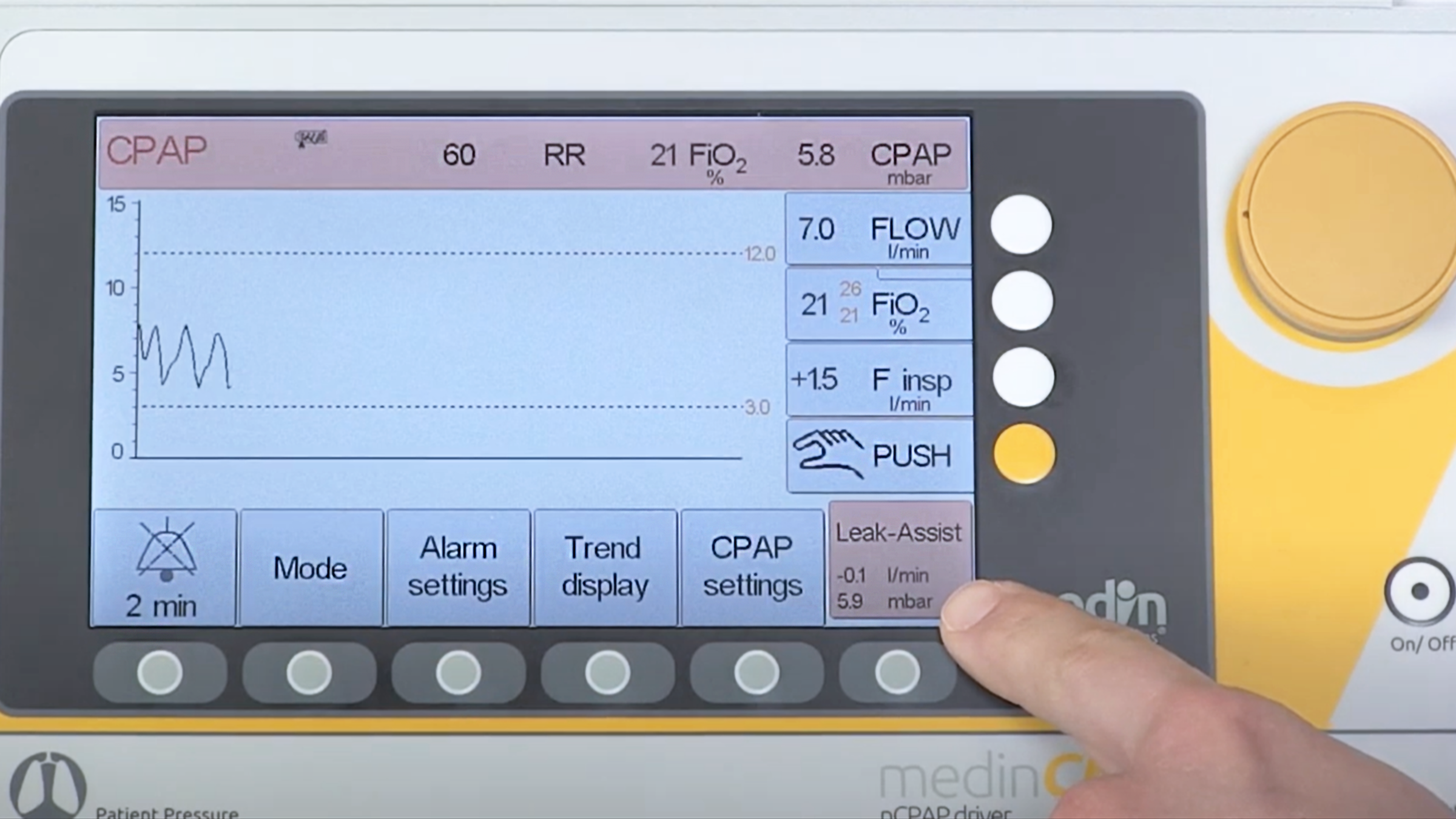

This video gives you a short overview on the functions and modes of the medinCNO nCPAP driver. medinCNO is used as stationary nCPAP driver for the nCPAP therapy of neonates and premature infants treated in combination with the nCPAP generator Medijet in intensive care units. medinCNO® may only be used in combination with simultaneous and constant hemodynamic monitoring of the patient, only by trained medical personnel and only during clinical use.

Comprehensive non-invasive respiratory support

medinCNO is a versatile nCPAP device which is used to provide respiratory support to premature infants and newborns. In combination with Medijet, the compact device is a stand-alone system and meets all requirements for non-invasive nCPAP therapy.

With five modes, medinCNO offers comprehensive non-invasive support in neonatology and is the only nCPAP device with nHFV.

For your patient

nCPAP-Modi. Für die Kleinen

Mit dem nCPAP Modus wir der Patient mit einem kontinuierlichen positiven Atemwegsdruck unterstützt. In unseren flussgesteuerten Geräten wird der gewünschte CPAP Wert über den Atemgasfluss eingestellt. Um auftretende Leckagen z.B. über den Mund oder an der Nase auszugleichen, kann die Funktion LeakAssist aktiviert werden. Ein vorgegebener Zieldruck kann dann mit zusätzlichem Atemgasfluss angestrebt werden.

ApneaCPAP mode

Apnea is detected by MediTRIG. As a result, breaths are automatically triggered to stimulate breathing. Frequency, pressure level and breath duration can be individually adjusted.


In addition to the PEEP, breaths with fixed settings (pressure level, duration, frequency) are administered. These breaths have a higher pressure level and are not emitted in a synchronized manner.


Mode which is synchronized with the patient's spontaneous breathing with the aid of MediTRIG. With his/her inspiration, the patient can trigger an assisted breath which supports inspiration with flow and pressure.

nHFO nasal High Frequency Ventilation

nHFV combines the benefits of high-frequency ventilation and non-invasive CPAP support. The patient breathes spontaneously with CPAP support. A special valve shifts the air flow in all phases of spontaneous breathing under high-frequency oscillations (300 to 1200/minute).


The MediTRIG respiratory trigger was specially developed by medin for use in premature infants and newborns. Through the combination of the pressure measurement in the Medijet® generator and the signal processing in the medin nCPAP devices, MediTRIG works without additional sensors.

MediTRIG detects central as well as obstructive apnea.
