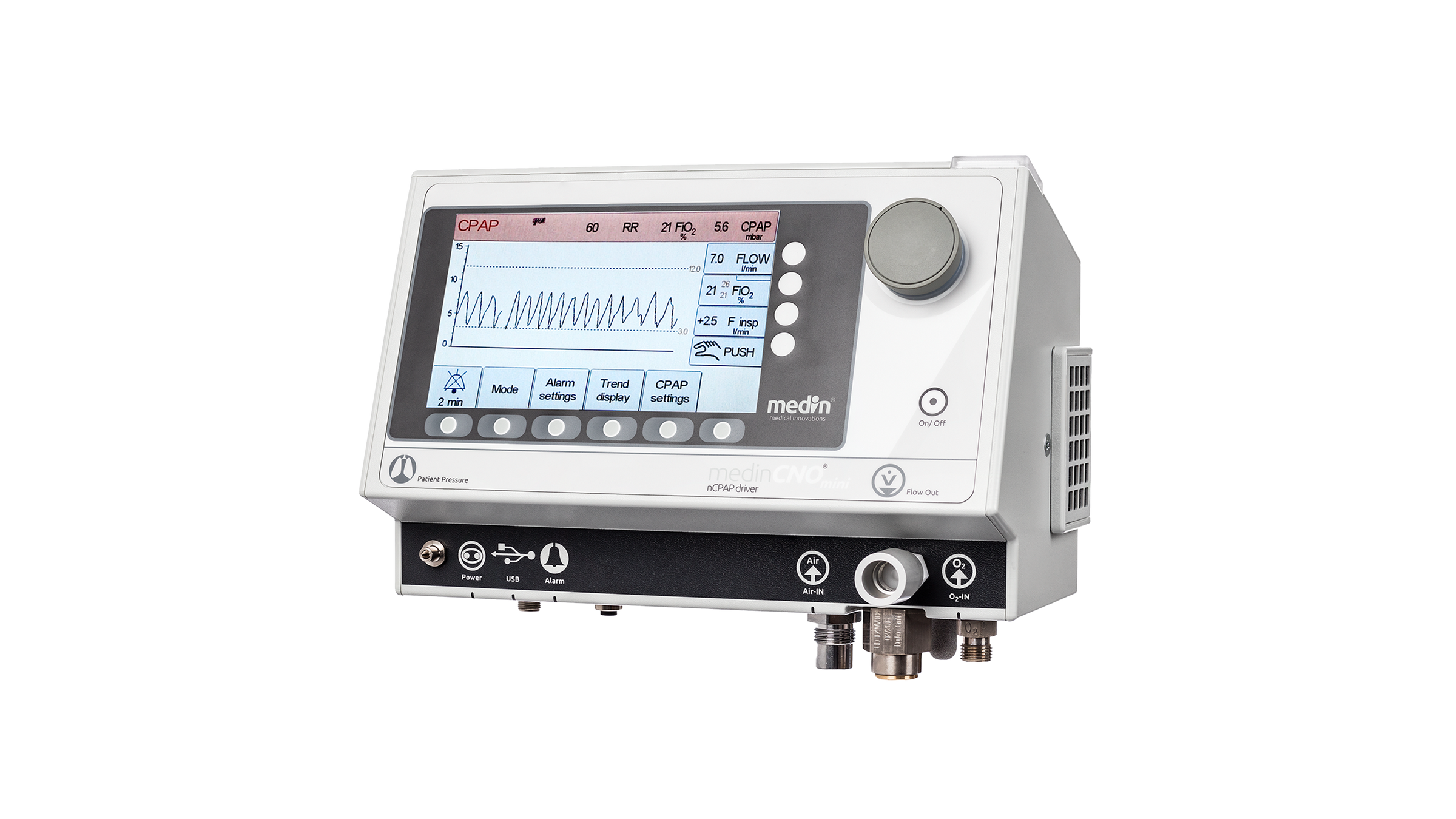

medinCNOmini. nCPAP and high flow oxygen therapy

"" ""

Product benefits

  • All basic modes for NIV respiratory support
  • HFNC-mode and nCPAP in one device
  • Apnea monitoring
  • MediTRIG: Integrated trigger and apnea monitoring without additional sensor
  • Leakage compensation

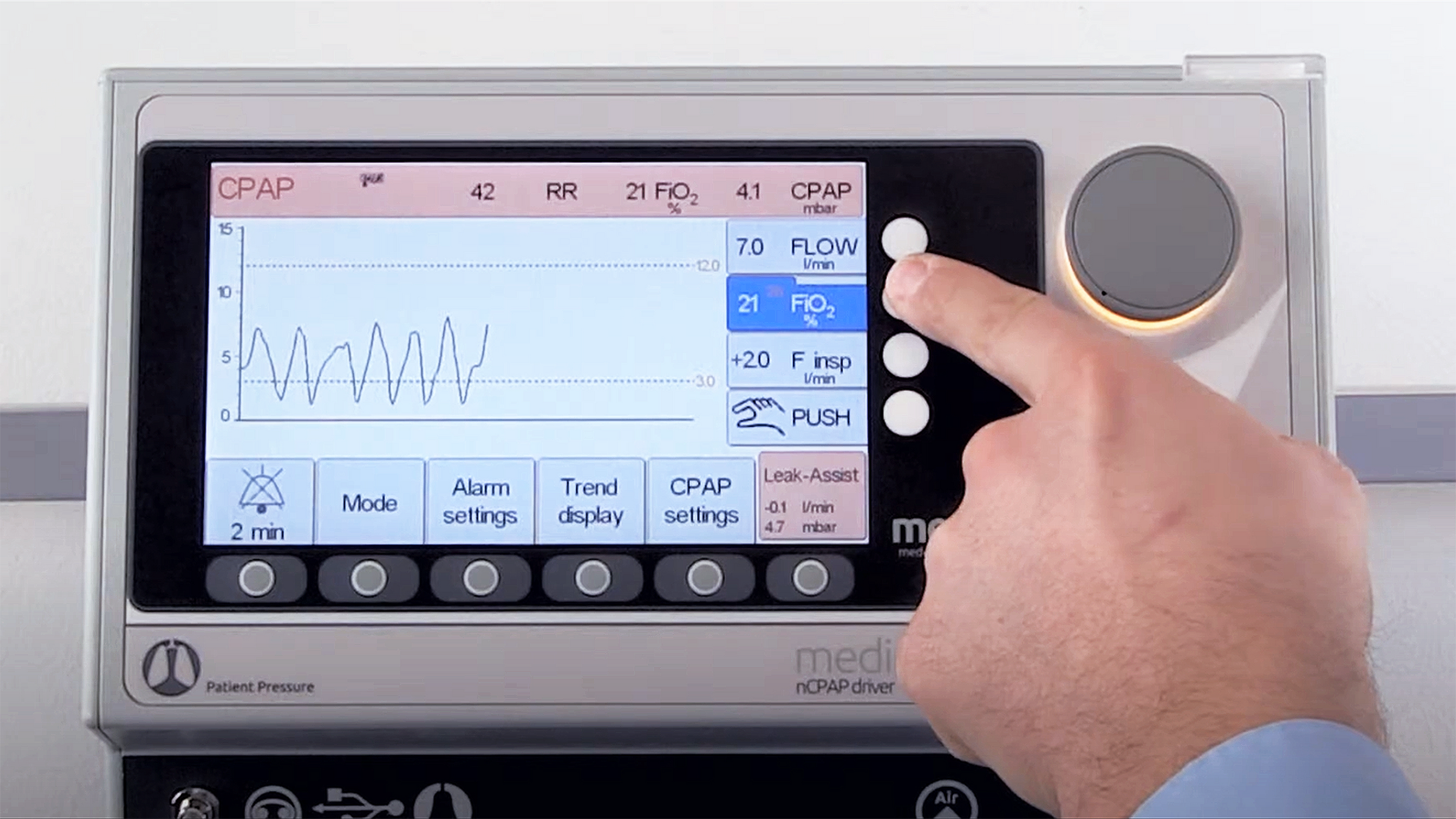

This video describes the key functions of our medinCNOmini. Please use this video to get an idea of the machine and its options for neonatal CPAP care. Videos about how to use the machine will follow soon.

Comprehensive non-invasive respiratory support

medinCNOmini offers the basic nCPAP and high-flow functions of a modern CPAP device.

In addition, the device has a special ApneaCPAP mode. With the aid of the MediTRIG respiratory trigger, the spontaneous breathing is detected near the patient and without any additional sensors. MediTRIG can be individually adapted to the patient’s spontaneous breathing. In the event of apnea, the patient’s inspiration is stimulated through automatically activated mechanical breaths.

For your patient

Modos nCPAP. Para los más pequeños

Los modos nCPAP están diseñados de tal manera que solo tendrá que fijar la presión CPAP que desee. y, a continuación, se ajustará el flujo en función del estado del paciente y las posibles fugas. Así se evitan presiones máximas involuntarias, se garantiza una compensación eficaz de las fugas y se ayuda a reducir el consumo de oxígeno. El ajuste del flujo se lleva a cabo casi inmediatamente gracias a que la medición es altamente sensible.

ApneaCPAP mode

Apnea is detected by MediTRIG. As a result, breaths are automatically triggered to stimulate breathing. Frequency, pressure level and breath duration can be individually adjusted.

NIPPV/BiLevel

In addition to the PEEP, breaths with fixed settings (pressure level, duration, frequency) are administered. These breaths have a higher pressure level and are not emitted in a synchronized manner.

nasal High Flow Therapy

nHFT describes the supply of heated and humidified breathing gas via a nasal cannula. The gas flow administered is thus higher than the patient’s inspiratory respiratory flow. In neonatology, a flow of more than 1 LPM is considered to be high-flow therapy, while for adults, correspondingly higher values should be applied.

MediTRIG

The MediTRIG respiratory trigger was specially developed by medin for use in premature infants and newborns. Through the combination of the pressure measurement in the Medijet® generator and the signal processing in the medin nCPAP devices, MediTRIG works without additional sensors.

MediTRIG detects central as well as obstructive apnea.
